Transformation Interface Pattern-Andy Bulka, August 2001 This page may not print that well (blame FrontPage? - any suggestions appreciated) or download the printable pdf version. AbstractThe Transformation Interface is both a design pattern and an architectural pattern. It
is an interface or layer, which offers services to transform an object into
another format and back again. A pair of methods on some class e.g. The ‘impedence mismatch’ between class instances in memory and relational databases can be viewed as an object-to-table format ‘transformation’ problem. In fact, persisting an object to disk and back again is one of the most common transformations - as is ‘transforming’ an object to and from a human manipulable/editable format in a GUI. Other examples of object transformations are: saving and loading an object to and from XML format, saving/restoring or sending/receiving an object using streaming or serialization, encryption/decryption, and perhaps even making and restoring a memento of an object. Because there are so many implementations of such an abstract idea of ‘transformation’, I have set up the context to be quite specific (implementing a three-tiered architecture of GUI-to-Model mapping and Model-to-Persistent storage mapping) – in order to more concretely explain the pattern to the reader. Consequently, this paper focuses on how the Transformation Interface pattern resolves the forces that appear in the context of implementing such a three-tiered architecture, rather than discussing too much the nature of the transformation interface itself, or in studying examples of all its incarnations. This paper includes working code to both a persistence layer and a GUI display mechanism - both implementations of the Transformation Interface Pattern, which can then be ‘plugged together’ to form the main hub of a complete application architecture. ContextYou are writing a number of applications, of different sizes, some in different languages and operating systems, all of which require that require that certain objects be saved to disk and also be displayed in a GUI. You are looking for a pattern that describes a general approach to implementing these ‘core transformations’. ProblemHow do you design the transformation of an object into persistent, graphical and potentially other formats, in a way that is abstract and language/class-library neutral so that you have the flexibility to take advantage of the language facilities and class libraries available in each particular implementation context? You want to implement any such solution as simply as possible.

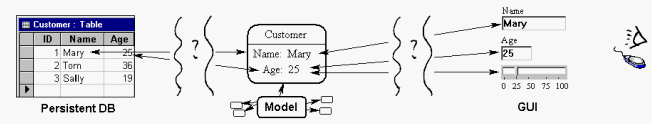

Figure 1. How do we implementing the mapping layersrequired by the above application architecture? Figure 1. How do we implementing the mapping layers required by the above application architecture? Figure 1. How do we implementing the mapping layers required by the above application architecture? Figure 1. How do we implementing the mapping layers required by the above application architecture? Forces
Forces involved in data-aware solutions Relational database-style data-aware controls are often compelling solutions, and may be all that is required in certain contexts, for example, where portability and transparency forces are weak, and you are only dealing with persistence to relational databases. However, one day you might be writing a stockmarket simulator in the Python language, which requires objects to be streamed to file, and requires the complex display of objects in a Java swing GUI under Linux and then later requires you to re-implement the display of those same objects in a Delphi GUI form under Windows. In this example, the forces of ‘adaptibility’ and ‘control’ are strong, and the ‘data-aware’ force is weak and thus traditional data-aware controls are not going to adequately resolve the forces. Another major issue with data-aware controls is that in such frameworks, database tables, not objects are first class citizens - you don’t even need to define classes to use data-aware frameworks (but of course you need to define your tables). This complicates the task of an object oriented developer who wants to model his or her domain by defining classes with both attributes and behaviour, and wants to make these classes first class citizens within their overall design. Ironically the developer usually proceeds by demoting the relational database to a mere storage facility and is forced to implement a persistence layer which transforms (loads/saves) the objects in memory to rows in tables. Data aware controls could still conceivably be used, as long as all relevant objects are persisted to disk immediately before the data aware GUI form is invoked. SolutionDefine an interface featuring a pair of transformational methods. One method converts the attributes of an object into the foreign format. The second method converts the foreign format back into attributes of the object. Maintain a reference (e.g. pointer or integer) to the other format in either the original object or the transformed object (e.g. a domain object in memory might store an integer ID reference of the record in a table that persists that domain object). The two methods of the class implementing the Transformation Interface will contain all the (possibly detailed) mapping code required to transform an object into another format.

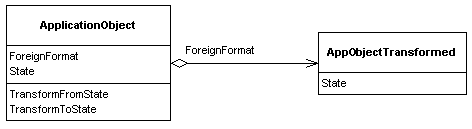

Figure 2. Transformation Interface Pattern. You have some flexibility as to where to put the Transformation Interface mapping implementation (the two methods and property). In our working implementations, below, the two persistence layer transformation interface methods (save/load) for the business object are implemented on the business object. However, the presentation layer transformation interface methods (display/repopulate) are implemented on the form (see figure 4). There are numerous design alternatives available, depending on your situation. For example we can instead use an adapter class to implement transformation interface methods. Figure 5 illustrates using a mediating adaptor class to implement the GUI transformation interface methods on behalf of the form. Even the persistence transformation interface methods of business objects could alternatively be implemented on a separate ‘writer’ class - that knows about the internals of the class that it is persisting/transforming. (See the related patterns section, Serializer pattern, for an even more generic (but more complex) way of implementing a writer class). Regardless of this implementation flexibility, there are serious considerations to keep in mind when deciding where to put the transformational interface. For example since you want to keep knowledge of the GUI out of the model, you would not implement a GUI transformational interface on a business object. However a persistence transformation interface is often implemented on the business object - though this is not as objectionable since how an object correctly persists itself is arguably a direct concern of the business object. In any case, such persistence functionality can alternatively be implemented on an adapter object, as mentioned above. Thus one way that the mapping layers required in Figure 1. could be implemented by having both the business object and GUI form implement Transformation Interfaces.
Examples of Transformations
ConsequencesResolution of Forces All the forces are adequately resolved by this pattern (though see limitations section, below). The necessary persistence and GUI functionality has been implemented relatively simply compared with potentially complex MVC-like and persistence-layer schemes. We have avoided non portable, proprietary data-aware components in favor of a flexible, homegrown and fully OO design. The force of total transparency and control is satisfied because the exact code that achieves the transformation is visible to the programmer and fully encapsulated inside the two transformation methods. The solution is pragmatic, quick to build and easy to debug. It is a common solution used in the real world – as opposed to theoretically optimal solutions that are never actually implemented. For example, you might like a sophisticated MVC (Model View Controller) framework in your next application, but you don’t have the time to build and debug it, so you use Transformation Interface, which usually does the job (subject to various limitations, below). Limitations Code Maintenance: Transformation Interface method code, whilst transparent, needs
to be created and maintained manually, which is tedious work. However it could be argued
that these ‘mappings’ need to be specificied in some way – whether
by lines of code, or by entering information into dialog boxes, or even by drawing and
dragging. So as long as the implementation code is syntactically economical (which it
usually is – consisting of multiple, simple, one line mapping statements e.g. Granularity: A limitation of a single pair of transformational methods is that they act at a high level of granularity – e.g. they display all the fields in a form, or they save all the fields of a record in a database – whether the object attributes has changed or not. More sophisticated transformational methods could be smart enough to check for ‘changed’ and ‘dirty’ flags to avoid unecessary work. In addition, you might consider factoring the transformation method behaviour into sub-methods which are intelligently called as required. You could even implement Observer somewhere in your design and communicate exactly what changed to the transformation method (e.g. as a parameter). All these enhancements introduce additional complexity – so unless the context demands optimisation, it is usually sufficient to use the original simple, brute force approach and map all attributes whether they have changed or not. Modality Issues: The above granularity considerations are closely related to issues of ‘modality’. The basic Transformation Interface solution assumes that GUI forms are displayed modally, or that we have exclusive access to the database records we are writing to. For example, by displaying a GUI form modally we guarantee that the information in the form will not change whilst the user has the form open. Usually the modality requirement is not a limitation – in fact modal forms are common, as is the requirement for exclusive access to database records. Even other transformations like streaming and serialization usually require exclusive access to a data streams or to the files that are being written to. However if your application includes some sort of real-time display, or the design allows two GUI forms representing the same model data to be active at the one time, then a fine-grained, MVC (Model-View-Controller)-like ‘observer’ based design might be worth considering so that every time an individual business object attribute changes, the relevant GUI control widget will be notified and updated. This is not just a granularity issue (making transformations as small and as efficient as possible), but a ‘timing of update’ issue (when are the transformations performed). Treating forms modally on the other hand keeps things very simple – opening the form causes the transformation to the GUI, and hitting OK triggers the reverse transformation. Implementation
The last two implementation styles allow polymorphic iteration over descendants of the
base class e.g. a Initialization Before displaying information in a form, the form usually needs to be created and displayed. Before writing an object’s attribute information to a database, the database needs to be correctly opened. Simlar issues arise with files and streams etc. These initializations can be placed in client code, manager objects, constructor methods or separate methods (static or otherwise), depending on the circumstances. In the example presentation layer shown later in this paper (figure 6), the adaptor class which implements the Transformation Interface creates the form in its contructor method. Attribute Mapping The key issue in a two-way mapping is how to send the data (attributes of an object) from one layer or format to another. This is handled by the code in the transformation methods – that is the sole purpose of transformation methods. The implementing programmer needs to type in the necessary code to painstakingly map each attribute of the object onto the other format. The code in the transformation methods can be relatively straightforward or can encapsulate and hide the possibly fiddly details of the transformation. Encapsulating complex mappings One of the benefits of complete transparency of implementation is the ability to encapsulate any messy mapping code under the ultra-simplicity of a pair of transformational methods. For example, a Similarly, a pair of GUI transformational methods would contain the either straightforward or fiddly code to represent object attributes in widgets of some sort, and back again – the details of which will vary depending on the GUI widgets involved. Furthermore, complex mappings might require that aspects of a single object attribute be displayed in separate GUI widgets. Conversely, a number of object attributes might be combined and displayed in a single GUI widget (e.g. a series of numbers plotted on a graph/canvas widget). Whether the code is simple or complex, it is encapsulated in the transformational methods, and the programmer knows where to go to modify and control the mapping behaviour. Foreign keys and pointers A further example of how transformation methods can encapsulating complex mappings is the case of say, loading a composite object from a database. The .LoadFromDb transformation method for the composite class e.g. Customer would house the code necessary to convert, the database table record into an object. Any aggregated sub-object e.g. CustomerAddress would be referred to using a foreign key (an integer id). So in order to fully construct the composite domain object e.g. Customer, both the actual object (Customer ) and the object it aggregates (CustomerAddress ) will need to be created and a pointer set from the composite object to the aggregated sub-object. In addition, a number of database queries need to be made in order to extract all the necessary data for both CustomerAddress and CustomerAddress. The transformation method can encapsulate all that needs to be done. Note that ideally, such transformational methods would typically call other transformational methods to load in the sub-objects rather than trying to do everything themselves – this is just common sense factoring. e.g. If class Customer aggregates the class CustomerAddress, then Customer.LoadFromDb will at some stage call CustomerAddress.LoadFromDb. One needs to be careful to transform/load objects in the right order, since loading one object may rely on another object already being loaded. Some of the considerations discussed here are similar to those of ‘deep streaming’ (see Serializer pattern). Introducing Observer To get ‘real-time’ updates of changes to a foreign format’s state, (e.g.
a form want to be notified when there are changes to a business object attributes), the
class implementing the transformation interface should also implement Observer. It can
then subscribe and be notified of changes to the foreign format. To take advantage of this
notification process, the transformation method should be modified to take a parameter
telling it what changed e.g. In a GUI display scenario, another alternative way of implementing more granular and efficient transformations (mappings / screen updates) is to create an adapter object for each business object or even for every business object attribute, and create appropriate manager objects to coordinate all the adaptors. Here we start to equal fine grained MVC-like efficiency, but begin to take on some of its complexity. On the positive side, by using Transformation Interface throughout these more complex composite designs, you help to reduce their complexity a little - for example, by insisting that all relevant classes implement standard transformation method pairs. The "Persistence Layer" Transformation Running Example of a Persistence Layer The following is a small but fully working implementation of a persistence layer. The
Transformation Interface is implemented on the business class as a pair of load/save
methods, which are overloaded in the import shelve, string
class PersistenceTransformationInterface: # Abstract
def save(self):
pass
def load(self):
pass
def getId(self):
pass
class DbPersistenceTI( PersistenceTransformationInterface ):
NextKeyId = 1 # class variable
def AllocateNextId(self):
result = DbPersistenceTI.NextKeyId
DbPersistenceTI.NextKeyId += 1
return str(result)
def getId(self):
return self.dbKeyId
class BusinessObject( DbPersistenceTI ):
def __init__(self): # Constructor
self.dbKeyId = self.AllocateNextId() + ',' + \
self.__class__.__name__
class Model:
def __init__(self, file):
if not file:
raise 'NoFileSpecified'
self.Filename = file
self.BOlist = []
def Add(self, obj):
self.BOlist.append(obj)
return self
def SaveAll(self):
db = shelve.open(self.Filename,'c')
for obj in self.BOlist:
obj.save(db)
db.close()
def LoadAll(self):
db = shelve.open(self.Filename,'r')
self.BOlist = []
keyz = db.keys()
for dbkey in keyz:
classref = string.split(dbkey,',')[1]
obj = eval(classref)() # Create appropriate object
obj.dbKeyId = dbkey
obj.load(db)
self.BOlist.append(obj)
db.close()
return self
class Customer( BusinessObject ):
def __init__(self, name=''):
BusinessObject.__init__(self) # Call inherited constructor
if name:
self.FirstName, self.Surname = string.split(name)
def save(self,db):
db[ self.dbKeyId ] = (self.FirstName, self.Surname)
def load(self,db):
self.FirstName, self.Surname = db[ self.dbKeyId ]
Success! We have just implemented a working persistence layer/framework using about forty
lines of code (To aid clarity, How additional classes participate in persistence To add new business classes that are capable of persisting themselves, descend a new
class from class class Supplier( BusinessObject ):
def __init__(self, name='', address='', phone=''):
BusinessObject.__init__(self)
self.Companyname = name
self.Address = address
self.Phone = phone
def save(self,db):
db[ self.dbKeyId ] = (self.Companyname, self.Address, \
self.Phone)
def load(self,db):
self.Companyname, self.Address, self.Phone = \
db[ self.dbKeyId ]
Note that the Python
The "Presentation Layer" GUI Transformation Now we will implement the ‘mirror transformational task’ of providing a GUI for a business object. The object or model is ‘transformed’ to and from a human manipulable/editable format in a GUI (Graphical User Interface). Sample Implementation #1 - Put the transformational methods on the form class A common way to implement the GUI Transformation Interface is to add the required two methods and attribute to a GUI form class:
Figure 4. A GUI form implementing the transformation interface. Typically you would also create a static class method for the form class that takes care of all the initialization details including the invocation/showing and disposal of the form. This initialization code might even be implemented inside the form’s constructor, taking as a parameter the business object(s) or model to display.After creating/initializing the form, the startup method or constructor must eventually
call the transformational method

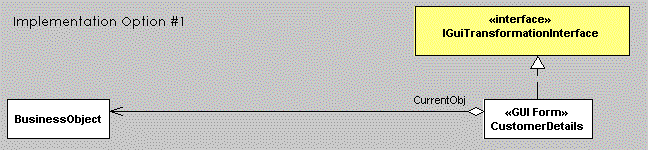

Figure 5. A GUI form class implementing the transformation interface. After the user has edited the widgets on the form and clicks OK, the
transformational method should be called. This method will iterate through all the relevant widgets on the form, and write their values back into attributes of the business object. Then the form is closed. If Cancel is clicked, then Form as mediator In this first, sample implementation of a persistence layer transformation, the form acts as a handy central mediator, providing a shared namespace, housing the transformation methods (usually implemented as methods of the form class) and also owning all the form widgets. The form usually also houses the event methods that respond to user interactions. Alternatively, some of these roles can be taken over by an adaptor class (see next working example, implementation #2).Working Example Implementation #2 - Put the transformational methods on mediating adapter class Sometimes it is more convenient to place the transformation interface on a separate mediating adapter object rather than on the form itself:

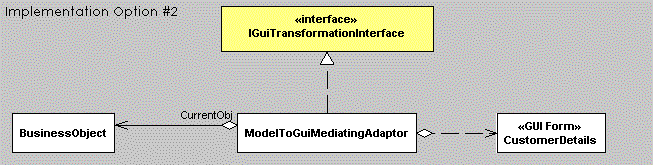

Figure 6. Rather than implementing the transformation interface
on the GUI form itself, Use an adapter class when you cannot or choose not to sub-class forms. For example, your forms or GUI widgets may be difficult to subclass. Perhaps you want the flexibility of being able to change adapters without affecting forms. The Optionally, if the adaptor class also implements Observer, it can be notified of specific attribute changes in the business object or model (See MGM pattern). The following implementation code works without the need for Observer, using only the simple Transformation Interface pattern. Despite the brevity of the code, this code is fully functional, and fits on less than a page. Running Example of a Presentation Layer The following is an implementation of a GUI display framework that uses the simple Transformation Interface approach. A customer object is created and a form is displayed in which the user can edit the attributes of that customer business object. The following code is written in the clear, syntactically minimalist language of JPython - which is Python running on a Java VM, with seamless access to all Java classes, including swing! (See Appendix for easy tips on reading Python code). class GuiTransformationInterface:
def displayObjectInGui(self, obj):
self.currentObj = obj
def rePopulateObjectFromGui(self):
pass
def getCurrentObjectBeingDisplayed(self):
return self.currentObj
class Customer:
def __init__(self, name=''): # Pass customer name to Constructor
if name:
self.Firstname, self.Surname = string.split(name)
from pawt import swing
import string, java
class CustomerAsSwingForm(GuiTransformationInterface): # Model-Gui Mediator
def __init__(self, customer):
self.frame = swing.JDialog ( swing.JFrame(), 1)
self.frame.contentPane.layout = java.awt.FlowLayout()
addwidget = lambda obj, topane : topane.add(obj)
pane = self.frame.contentPane
self.edFirstname = swing.JTextField("",10)
self.edSurname = swing.JTextField("",10)
buttonOk = swing.JButton('Ok', actionPerformed=self.ok)
buttonCancel = swing.JButton('Cancel', actionPerformed=self.cancel)
addwidget(swing.JLabel("First Name: "),pane)
addwidget(self.edFirstname,pane)
addwidget(swing.JLabel("Surname: "),pane)
addwidget(self.edSurname,pane)
addwidget(buttonOk,pane)
addwidget(buttonCancel,pane)
self.displayObjectInGui(customer)
self.frame.setSize(200,120)
def show(self): self.frame.show()
def close(self):
self.frame.setVisible(0)
self.frame.dispose()
def ok(self,e): self.rePopulateObjectFromGui() ; self.close()
def cancel(self,e): self.close()
def displayObjectInGui(self, obj):
GuiTransformationInterface.displayObjectInGui(self, obj) # call inherited
self.edFirstname.text = obj.Firstname
self.edSurname.text = obj.Surname
def rePopulateObjectFromGui(self):
self.getCurrentObjectBeingDisplayed().Firstname = self.edFirstname.text
self.getCurrentObjectBeingDisplayed().Surname = self.edSurname.text
Creating more forms For every GUI form required in your application, simply create a new mediating adapter class which implements the transformational methods in the required way to move object attribute data to the widgets and out again. All the widget specific code required to achieve this mapping is nicely encapsulated in the code of the transformational methods of the adapter class. In this paper, we have mentioned how the Transformation Interface metaphor is applicable to many ‘transformational situations’. Our specific examples show the implementation of both persistence and GUI displays - using the same pattern! (there may be an comprehensibility advantage in this for both designers and implementers). Also, because of this broad applicability, the Transformation Interface arguably has an architectural aspect about it. For example, the above working implementations of a persistence layer and GUI display mechanism can be ‘plugged together’ to form the hub of a complete application architecture.

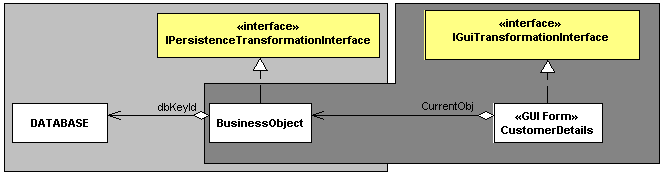

Figure 7. Applying the transformation interface pattern
twice, Related Patterns Serializer, Riehle, Siberski, Bäumer, Megert and Züllighoven. PLoPD 3, 1997 page 293. Serializer deals with the context of converting objects and arbitrarily complex data structures into different data representations and back, with an emphasis on streamed and persistent data formats - making no reference to its applicability in a GUI presentation layer context. The Serializer pattern is a much more complex solution than Transformation Interface,
and resolves different forces. The Serializable interface consists of a transformational
method pair
Neither the readers, writers, nor the object being serialized know anything about any
particular data format – specific concrete readers and writer classes override The Transformation Interface is a simpler pattern, with less classes required to implement it – though the pattern does require that the transformation methods be re-implemented for each new format. The Transformation Interface pattern encourages the transformational method code to be customising to the transformational task at hand, which may involve things like taking object attributes and storing them in GUI widget attributes or even may involve special calculations and drawings onto a graphic canvas area. The serializer pattern’s transformation are limited to reading and writing value types like string and integer etc. to an abstract stream. Model Gui Mediator (MGM), Bulka, A. KoalaPlop2000, RMIT Australia departmental technical report, http://www.cs.rmit.edu.au/reports/2000/00-7.html. MGM implements a GUI display transformation interface but also implements Observer to gain the benefits of more granular control of screen updates. Known Uses Reason! Software for critical thinking (1998-2000), Melbourne University, Australia. RIPS 2001 payroll system uses load/save method pairs for persistence and similar GUI methods pairs for all its modal forms. Used by retiree investment company. The Delphi class library (VCL) offer
APPENDIX Easy Tips on Reading Python Code Python is a simple, straightforward and elegant language. It uses standard conventions
of accessing methods and properties and is fully OO. Types are associated with objects not
variables, so you don’t need to declare variables. Functions are called like There are no Python understands named parameters e.g. In a method call, The first argument of all methods defined inside classes must be ‘self’. This
argument fills the role of the reserved word this in C++ or Java or self in
Delphi. Most languages supply this parameter (a reference to the current instance)
implicitly whereas Python makes this concept explicit. At runtime this parameter is
supplied by the system, not the caller of the method, thus the The statement You can return multiple items at once e.g. Other class files/modules are imported using Both Python and JPython (Java Python, now called Jython) are open source, free and available from www.python.org
